Network Traffic Analysis: A Guide to Modern Threat Detection
Your team probably already has a SIEM, endpoint telemetry, firewall logs, and a growing backlog of alerts no one wants to tune right before a board update. Then an incident review exposes the same problem security leaders keep finding: the attacker didn't need to defeat every control. They only needed to move through a part of the environment no one was watching closely enough.
That's where network traffic analysis becomes operationally important. Not as another dashboard, and not as a replacement for endpoint or identity telemetry, but as the layer that shows who is talking to whom, how often, over which protocols, and in patterns that don't fit the baseline. For a CISO, the value is simple. It closes visibility gaps, improves triage quality, and gives the SOC a signal it can automate against when deployed carefully.
Table of Contents
- Why Network Traffic Analysis Is Now Essential
- Understanding the Fundamentals of NTA
- Key Data Sources and Collection Methods
- Core Network Traffic Analysis Techniques
- Practical Threat Detection Use Cases
- Integrating NTA with SIEM and XDR
- Your NTA Implementation Checklist
Why Network Traffic Analysis Is Now Essential
Most security programs still discover the same uncomfortable truth during investigations. The perimeter alert fired. The endpoint tool caught part of the activity. Identity logs showed suspicious sign-ins. But nobody saw the internal movement clearly enough, early enough, to stop it before it spread.
That blind spot gets worse in hybrid environments. Cloud workloads, branch offices, remote users, service-to-service communication, and encrypted traffic all reduce the value of payload-centric monitoring by itself. Security teams need a way to watch behavior across the environment, not just events emitted by individual control points.
Network traffic analysis became important the moment networks stopped being simple client-server estates and started behaving more like distributed systems. The category has also become a clear market priority. Grand View Research estimated the worldwide NTA market at USD 4.52 billion in 2024 and projects USD 6.21 billion by 2030, a 5.0% CAGR, reflecting steady demand as cloud adoption and distributed architectures increase the need for continuous monitoring (Grand View Research market analysis).
Why older visibility models fall short
Traditional packet inspection still has value, especially in narrow forensic scenarios. But it doesn't scale well as the only answer, and it loses visibility when payloads are encrypted.
Modern network traffic analysis is stronger because it doesn't depend entirely on content. It looks at communication patterns, timing, volume, destinations, and protocol use. That gives defenders a practical way to spot unusual behavior even when they can't inspect what's inside the session.
Practical rule: If your team can't describe normal east-west communication for your critical assets, you don't have a reliable way to detect abnormal east-west movement.
What the business gets from it
For a CISO, this is less about another technical capability and more about operational advantage:
- Better detection context for incidents that span endpoint, identity, cloud, and network layers
- Faster scoping when investigators need to know what a compromised system touched
- Higher-confidence automation because network evidence can validate whether an alert reflects real activity
- Reduced reliance on a single control type in environments where agents, logs, or payload inspection are incomplete
NTA matters now because attackers don't move in product categories. They move through infrastructure.
Understanding the Fundamentals of NTA

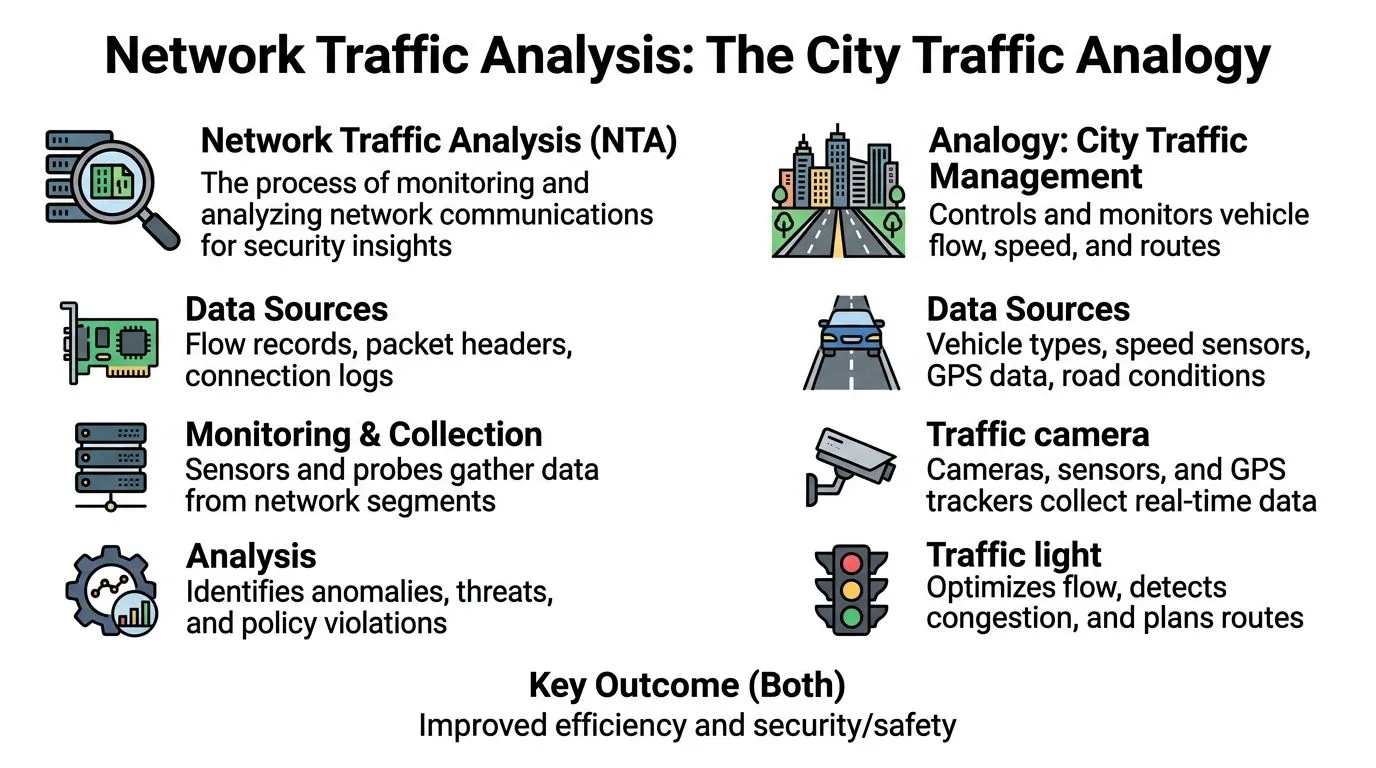

The easiest way to explain network traffic analysis is with a city traffic analogy. A city doesn't need to inspect the contents of every vehicle to understand congestion, dangerous routes, or abnormal movement. It watches where vehicles come from, where they go, how fast they travel, when traffic spikes, and which roads suddenly get used in unusual ways.
Networks work the same way. Packets are the cars. Flows are the traffic patterns. NTA focuses on those patterns.
What NTA actually watches
A foundational shift in NTA was the move from simple packet inspection toward flow-based monitoring with technologies like NetFlow. That change turned NTA from a troubleshooting niche into a core security layer that can still work when traffic is encrypted because it focuses on metadata rather than payload alone (Kentik explanation of NTA evolution).
In practice, NTA watches communication characteristics such as:
- Source and destination relationships between users, servers, subnets, and external services
- Protocol and port usage that doesn't match expected application behavior
- Timing and session behavior such as recurring connections at unusual intervals
- Volume and directionality that can signal scanning, staging, or exfiltration
That's why NTA is useful for both north-south traffic and east-west traffic. North-south shows movement in and out of the environment. East-west shows movement inside it, which is often where investigations become expensive.
How baselines make it useful
Raw telemetry isn't the point. The point is knowing what “normal” looks like for your business.
A finance application server should communicate with a narrow set of systems in predictable ways. A developer subnet may be noisy but still consistent in its own pattern. A domain-adjacent asset talking to a rarely used internal service after hours might be perfectly legitimate, or it might be the first useful sign of credential abuse. NTA works because it builds context around those differences.
A good NTA deployment doesn't try to treat every protocol the same. It treats predictable systems as high-value baselines and noisy systems as places where correlation matters more than standalone alerts.
Where NTA differs from DPI
Deep packet inspection asks, “What is inside the car?”
Network traffic analysis usually asks, “Why is that car taking this route, at this time, at that speed, and why are ten others suddenly following it?”
DPI is ideal when you need content-level detail and can support the cost and complexity. NTA is ideal when you need broad, continuous visibility across modern infrastructure, especially where encryption limits payload inspection.
For most enterprises, the practical answer isn't one or the other. It's flow-first visibility everywhere, with deeper packet inspection in the places that justify it.
Key Data Sources and Collection Methods
Choosing NTA data sources is an architecture decision, not a tooling checkbox. The wrong collection model creates blind spots, storage pain, or both. The right one gives you broad coverage without crippling the network team or flooding the SOC.
The main collection options
Teams typically work with four data sources in some combination.
| Data Source | Granularity | Network Overhead | Primary Use Case |
|---|---|---|---|
| NetFlow or IPFIX | Flow metadata | Low to moderate | Broad visibility, baselining, anomaly detection |
| sFlow | Sampled flow metadata | Low | High-throughput environments where scalability matters most |
| PCAP | Full packet detail | High | Forensics, protocol troubleshooting, selective deep investigation |
| Device and security logs | Event records and summaries | Low | Context, policy decisions, and correlation with traffic behavior |
Flow records usually carry the program. They scale well and preserve the metadata that matters for detection. Packet capture gives deeper evidence, but only where you can justify the operational burden. Logs provide the control-plane context that turns traffic observations into analyst-ready conclusions.
A strong starting point is to pair flow data with network device monitoring so the security team can correlate communication changes with device state, routing issues, and interface behavior.
Unidirectional versus bidirectional flow design
One of the most overlooked NTA decisions is whether to rely on unidirectional flows, bidirectional correlation, or both. Traffic records are typically directional at the Internet layer, so teams can analyze them as one-way streams or pair them into request-response conversations. Unidirectional data is lighter and easier to scale, while bidirectional correlation improves incident reconstruction and anomaly baselining (LSU research on flow direction trade-offs).
That trade-off matters more than many teams expect.
- Use unidirectional flow data when throughput is high, retention matters, and your main goal is broad visibility.
- Use bidirectional correlation when the SOC needs clearer conversation context during investigations.
- Use both selectively if the platform can keep cost and complexity under control.
What works in real environments
Flow-only collection works well for broad detection and operational baselining. It doesn't work well when analysts need payload-level evidence for a specific protocol abuse case.
PCAP works well at chokepoints, sensitive enclaves, and limited forensic tiers. It doesn't work as an always-on answer across everything.
Logs work well for explaining policy actions, identity events, and application behavior. They don't work as a substitute for actual network visibility because they only show what a device or app chose to record.
Collect the lightest data that still answers the question your analysts need to answer. If you collect the heaviest data everywhere, the program stalls before the first serious investigation.

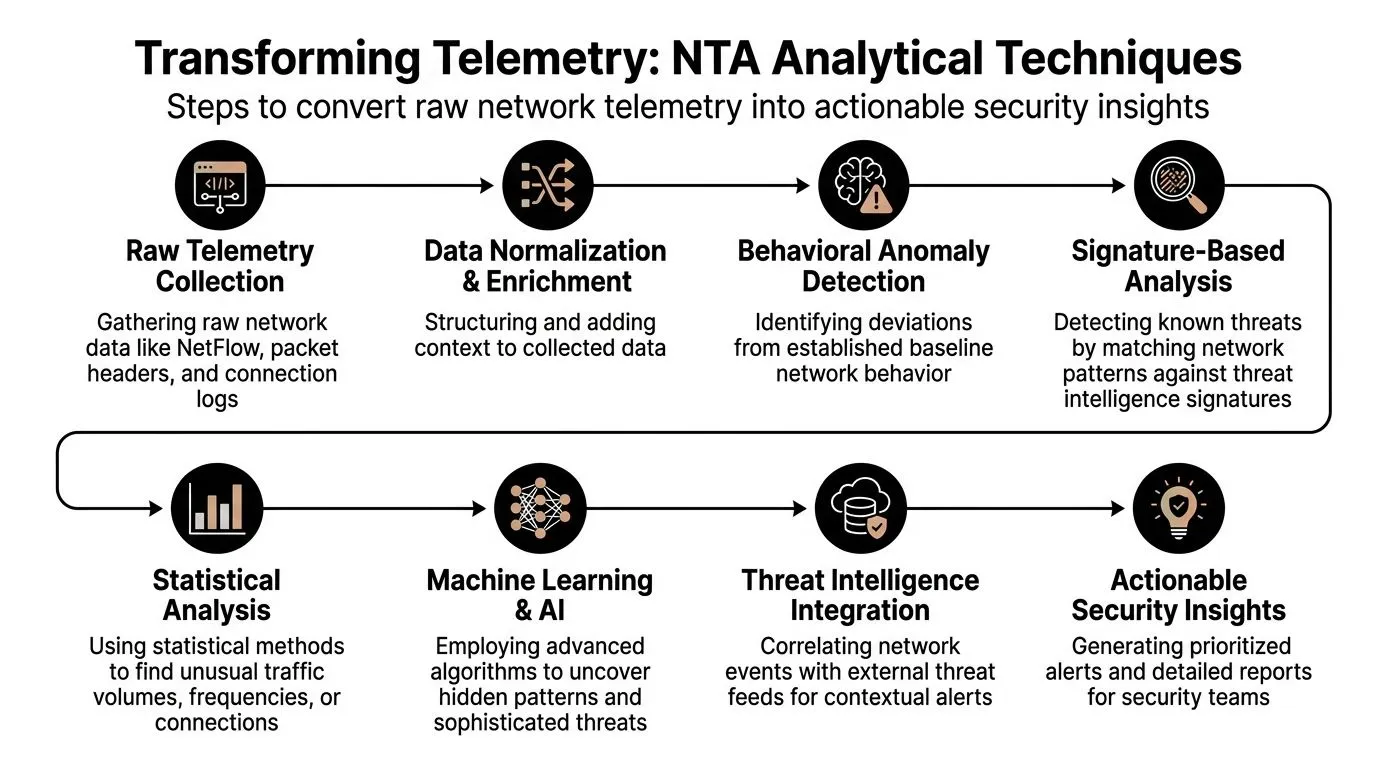

Core Network Traffic Analysis Techniques
Good NTA tools don't create value by storing more telemetry. They create value by converting network behavior into a small set of signals the SOC can trust. That requires a layered analysis pipeline, not a single detection method.
Start with baseline and statistical analysis
Every useful NTA program begins with baseline formation. The platform learns normal traffic relationships, communication timing, transfer sizes, protocol use, and typical destinations for systems, segments, and service groups.
From there, statistical analysis does the first cut. It identifies changes in frequency, spikes in transfer behavior, unusual connection distribution, or new communication paths. This isn't flashy, but it catches a large share of meaningful issues because many attacks still look like deviations from expected behavior.
Add behavioral analytics and correlation
The next layer is anomaly detection. Modern NTA increasingly relies on flow metadata such as IP addresses, ports, protocols, traffic volume, timing, and connection behavior rather than payload inspection, which allows it to detect threats like command-and-control activity and data exfiltration even when channels are encrypted (NetWitness overview of metadata-driven NTA).
That becomes much more effective when correlated with controls such as an intrusion detection and prevention system. A network anomaly by itself may be weak. A network anomaly plus an IDS signature plus a suspicious authentication event is usually worth an analyst's time and may justify automation.
What high-value analysis looks like
The strongest NTA pipelines usually combine several methods:
- Behavioral baselining to understand what a host, subnet, or application normally does
- Rule-based detection for clearly suspicious patterns such as prohibited protocols or unexpected external destinations
- Threat intelligence enrichment to add context when a destination, service, or pattern maps to known risk
- Asset context so the platform knows whether the behavior involves a kiosk, domain service, privileged workstation, or crown-jewel application
That last point is where many deployments fail. If the tool doesn't know the business role of the asset, it treats a lab device and a finance server too similarly. Analysts then tune around the noise instead of improving detection quality.
The best NTA detections usually aren't “rare traffic.” They're “rare traffic from an asset that should be boring.”
Why encrypted traffic is still visible
Encryption hides payload content. It doesn't hide the fact that systems communicated, when they communicated, how often they did it, how much data moved, or whether the destination and protocol pattern fit the baseline.
That makes NTA one of the few security controls that keeps producing signal as encrypted traffic becomes the default.
Practical Threat Detection Use Cases
The fastest way to judge whether NTA is worth the effort is to look at the attack paths it exposes better than most other controls. Three use cases matter in almost every enterprise environment.
Lateral movement inside the estate
An attacker gets an initial foothold on a user system. Endpoint telemetry may show the process tree, but it often won't show the full shape of internal movement across adjacent systems. NTA fills that gap by surfacing new internal communication paths that don't fit historical behavior.
Common signals include:
- A workstation initiating connections to peer workstations when that pattern is normally absent
- A server reaching laterally into unrelated subnets outside its usual application dependencies
- A burst of internal service discovery behavior that looks like reconnaissance rather than normal application traffic
East-west visibility demonstrates its value. Even a simple deviation, such as a system beginning to contact internal services it has never touched before, can move an investigation from vague suspicion to actionable containment.
Data exfiltration without obvious malware indicators
Data theft often doesn't announce itself with malware signatures. It looks like a business system sending traffic. The question is whether the destination, duration, and transfer pattern make sense.
NTA is particularly useful when the exfiltration path uses allowed channels. Analysts can flag unusually sustained outbound transfers, unexpected destination relationships, or a server that starts moving data at a pattern that doesn't match its role. This works even when the content itself can't be inspected.
What usually works:
- Baselines for outbound behavior by asset class
- Alerts tied to unusual external relationships, not volume alone
- Correlation with change windows and approved business processes
What usually doesn't work:
- Static thresholds with no asset context
- Treating all outbound bulk transfer as equally suspicious
- Relying on firewall logs alone to infer impact
Command-and-control that tries to stay quiet
Many command-and-control channels are designed to blend in. They use regular intervals, low-volume connections, and protocols already allowed through the environment.
NTA can still expose them because “low and slow” traffic often has a behavioral fingerprint. Repeated small connections to uncommon destinations, strange periodicity, rare protocol and port combinations, or a host that suddenly begins a consistent beaconing pattern all stand out against a decent baseline.
Quiet traffic isn't safe traffic. In many breaches, the most valuable signal is the traffic that looks too disciplined to be normal.
The practical lesson across all three use cases is the same. NTA rarely wins because it proves malicious content. It wins because it proves suspicious behavior early enough for the SOC to act.
Integrating NTA with SIEM and XDR
A standalone NTA tool is useful for investigations. It is rarely enough for modern response operations. If network evidence stays in its own console, analysts have to pivot manually, rebuild context by hand, and decide under pressure whether an alert deserves containment. That delay is where many SOCs lose time.
The operational question isn't whether NTA should integrate with SIEM and XDR. It should. The question is how to do it without creating signal overload.
A frequently ignored challenge is integration latency. A 2025 SANS survey found that 68% of SOC teams fail to automate responses due to NTA-SIEM integration latency, and teams need guidance on tuning thresholds and fusing flow data with SIEM correlation to trigger SOAR playbooks without generating false positives (Cisco discussion of NTA and SOC integration challenges).
What a workable architecture looks like
The most effective model is a layered pipeline:
- Ingest flow telemetry early from routers, switches, firewalls, cloud flow logs, and security sensors.
- Normalize and enrich immediately with asset identity, subnet role, business owner, and threat context.
- Correlate before indexing where possible so low-value traffic noise doesn't become long-term storage noise.
- Promote only high-confidence detections into incident queues and automated response workflows.
That last step matters. If every unusual flow becomes an alert, analysts will mute the category. If only correlated, context-rich events become incidents, NTA starts contributing to automation instead of blocking it.
How to reduce alert fatigue
SOC teams usually make one of two mistakes. They tune too loosely and drown in benign anomalies, or they tune too tightly and miss the slow behavioral shifts NTA is good at finding.
A better pattern is to create tiers of action:
- Observation tier for weak anomalies that feed baselining and hunt workflows
- Analyst review tier for suspicious traffic plus at least one supporting signal
- Automated action tier for detections that combine network behavior, asset criticality, and confirming evidence from another control
One practical example is using behavior anomaly detection inside a unified workflow so network deviations are judged alongside endpoint and log evidence rather than promoted as standalone alarms.
Where a unified platform helps
This is one place where architecture matters more than brand. An open-source SIEM/XDR platform such as UTMStack can ingest logs, NetFlow, Syslog, API-fed cloud events, and agent telemetry, then correlate them in real time before indexing. That approach is useful because it reduces duplicate alerts and supports automated playbooks only after multiple signals align.
The difference is significant in day-to-day SOC work. Instead of a network analyst opening one console and an endpoint analyst opening another, the team works from a shared incident context. That makes containment decisions faster and more defensible.
A short walkthrough helps make the integration model concrete:
What to automate and what not to automate
Automate actions that are reversible and evidence-based. Quarantine a host, enrich a case, increase logging, block a known-bad destination, or open an incident with attached network context.
Don't automate destructive actions based on a lone traffic anomaly. NTA is powerful, but the safest response design still uses correlation and confidence scoring before it changes production behavior.

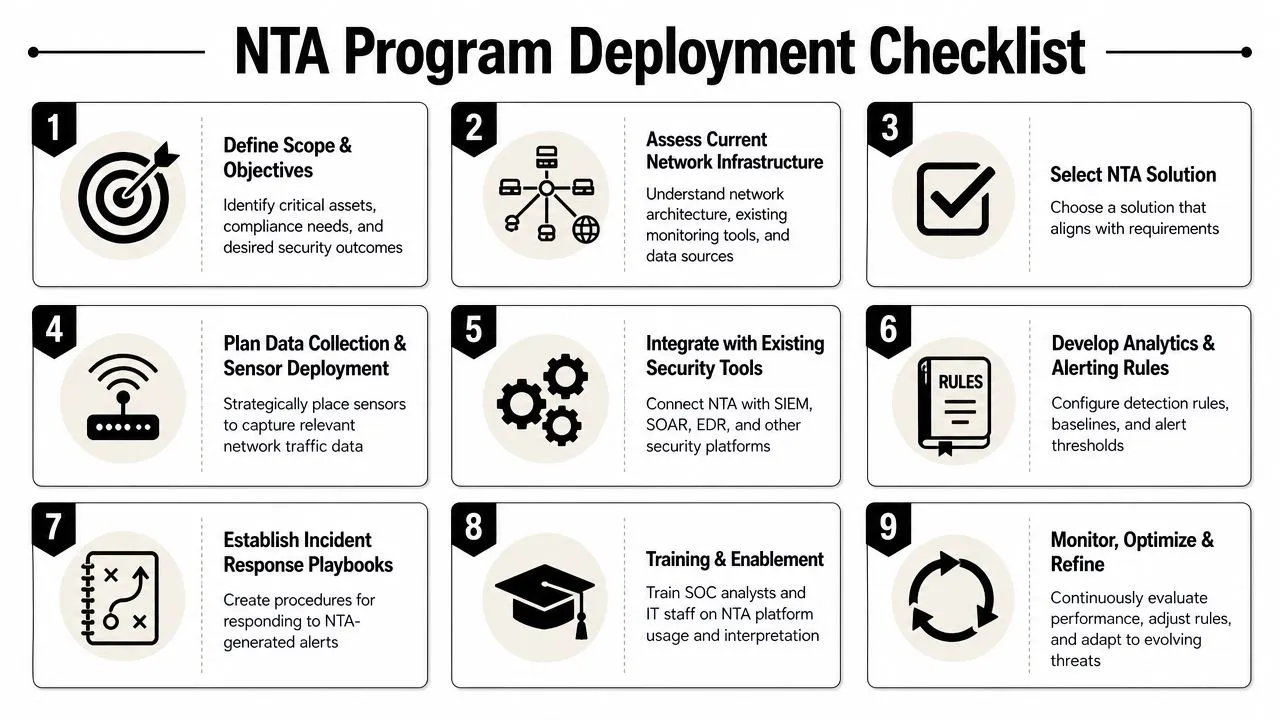

Your NTA Implementation Checklist
Most NTA programs fail because teams buy visibility before they decide what decisions that visibility should support. Start with operational outcomes. Then build the telemetry and automation around them.
The practical rollout sequence
- Define the detection objectives first. Pick a small set of high-value outcomes such as lateral movement, command-and-control, or suspicious outbound transfer from sensitive systems.
- Map the critical segments. Focus on data center chokepoints, cloud ingress and egress paths, privileged enclaves, and the internal paths around high-value assets.
- Choose the right collection model. Use flow records broadly, logs for context, and packet capture only where deep inspection is operationally justified.
- Label assets before tuning detections. Traffic from a domain-adjacent server should not be judged the same way as traffic from a test box.
- Build a baseline window. Give the program enough time to learn business rhythm before enabling aggressive alerting.
- Create alert tiers. Separate hunt signals from analyst-review alerts and automated-response candidates.
- Integrate with SIEM and SOAR early. If NTA isn't connected to response workflows, it becomes another console instead of a force multiplier.
- Test playbooks with safe actions first. Start with enrichment, case creation, and reversible containment steps.
- Review exceptions continuously. Business changes, cloud shifts, and new applications will break old assumptions.
What success looks like
Success isn't “we collect NetFlow now.” Success is more specific.
- Analysts can explain why a network alert matters
- Investigators can scope affected systems quickly
- The SOC can automate some containment actions without guessing
- Security leadership can show that network telemetry supports detection, response, and audit needs
Build the NTA program around decisions, not dashboards. If a detection can't change triage, containment, or investigation quality, it isn't mature enough yet.
If your team wants to operationalize network traffic analysis inside a unified detection and response workflow, UTMStack is one option to evaluate. It combines SIEM, SOAR, and XDR capabilities with ingestion for logs, NetFlow, Syslog, APIs, and agents, which makes it suitable for teams that want correlated detection and automated response without managing a collection of disconnected tools.
