Antivirus and Firewall: Building Layered Defense with SIEM
“Install antivirus and enable the firewall” is still common security advice. It's also incomplete. Those controls can block malicious code and unwanted traffic, but they don't automatically connect an endpoint detection to the firewall event that preceded it, identify a compromised identity, or tell an analyst whether a policy change was legitimate.
The operational distinction matters. Antivirus and firewall are foundational controls, not complete detection and response systems. They protect different surfaces, produce different evidence, and can both be bypassed, misconfigured, overloaded, or tampered with. A SIEM or XDR platform supplies the context they lack by collecting events, correlating activity, and turning isolated alerts into an incident that a security team can investigate and contain.
Table of Contents
- Why Antivirus and Firewall Alone Are Not Enough
- Comparing Antivirus and Firewall Capabilities
- Building Layered Defense with Complementary Controls
- Deployment Best Practices and Performance Sizing
- Integrating Telemetry with SIEM and XDR Platforms
- Designing Automated Response Playbooks
- Mapping Controls to Compliance Frameworks
Why Antivirus and Firewall Alone Are Not Enough
Most organizations deploy endpoint antivirus and network firewalls early in their security programs. The mistake comes later, when deployment gets treated as proof of protection. A firewall may deny an unwanted connection, while antivirus may quarantine a file, yet neither control necessarily understands the relationship between those events, the user involved, the cloud workload contacted, or the activity that followed.
The perimeter and endpoint boundary
A firewall controls network traffic. Antivirus detects or removes malicious code on a device. Independent coverage makes the boundary explicit, neither replaces the other, because a network control can't clean an infected endpoint and an endpoint control can't enforce traffic policy for every system in an environment. The distinction becomes more important as attackers target edge devices themselves. Recorded Future reported that 17% of actively exploited CVEs targeted edge-security and gateway products, including SSL-VPNs, next-generation firewalls, secure gateways, and remote access portals. Recorded Future's H1 2025 malware and vulnerability research provides that context.
Encrypted traffic creates another blind spot. A firewall that can't inspect relevant SSL/TLS sessions may see a permitted connection without seeing the payload, while antivirus may only encounter the resulting file or process after delivery. Even then, a novel attack can evade a signature, execute through a trusted tool, or abuse an already-authorized account.
Alerts without context become workload
Standalone tools generate useful signals, but analysts still need to answer basic questions:
- What happened first? A permitted connection, a policy change, a suspicious process, or a failed login?
- Which asset is affected? A workstation, server, cloud instance, or security appliance?
- Was the control working? A scan completed, a file was quarantined, or logging was disabled?
- What happened next? Lateral movement, persistence, data access, or repeated outbound communication?
A SIEM or XDR platform can join those answers across endpoints, firewalls, identity systems, cloud services, and vulnerability data. Without that correlation layer, teams often investigate each alert separately and miss the sequence that establishes compromise.
Architectural rule: Treat antivirus and firewall as enforcement points and telemetry sources. Don't treat either one as the incident timeline.
Comparing Antivirus and Firewall Capabilities
Antivirus and firewall controls overlap in purpose, but not in operating position. Antivirus runs close to the workload and evaluates files, processes, and endpoint behavior. A firewall sits on a network path or cloud control plane and evaluates connections, policies, and traffic characteristics.
Commercial antivirus tools originated in the 1980s, when early products scanned local systems for signature codes associated with known viruses and isolated identified threats, as described in Security.org's annual antivirus market report. Modern products retain that detect, classify, and quarantine model while adding behavioral analysis, cloud intelligence, and automated remediation.
Firewalls enforce reachability. They can deny traffic by policy, restrict access between network zones, and inspect sessions where decryption is enabled. They don't determine whether a permitted application is malicious, whether a user account has been compromised, or whether an endpoint has already been infected.
Antivirus vs Firewall Comparison
| Aspect | Antivirus | Firewall |
|---|---|---|
| Primary location | Endpoint, server, or workload | Network edge, internal segment, cloud, or host |
| Main decision | Whether code or behavior appears malicious | Whether traffic should be allowed, denied, or inspected |
| Typical evidence | Scan result, detection, quarantine, remediation, tamper event | Allow or deny decision, connection attempt, policy match, session and inspection result |
| Strongest use | Detecting and containing malicious files and endpoint activity | Controlling communications and reducing unauthorized network access |
| Common limitation | Unknown or fileless activity may evade simple signatures | Authorized or encrypted traffic may conceal harmful activity |
| Operational concern | False positives, resource use, exclusions, and agent health | Rule sprawl, inspection overhead, policy drift, and audit readiness |
Antivirus quality must be measured through both protection and usability. AV-Comparatives' 2025 real-world test covered 428 attack cases, with top products reaching 100% or 99.5% protection rates. AV-Comparatives' published test reference also accompanies enterprise evaluation data reporting a Trellix Endpoint Security configuration with 97% total accuracy and 0% false positives. Those results illustrate why detection and false-positive behavior belong in the same evaluation.
Firewall capacity requires a similarly realistic definition of performance. A vendor's forwarding figure isn't enough if production policy requires SSL/TLS decryption and inline antivirus inspection. A 2024 academic test of FortiGate 40F and 1500D found consistent virus detection on both devices, while the higher-end 1500D performed better under HTTPS traffic when inspection features were active. The academic FortiGate evaluation supports sizing for inspected traffic rather than nominal forwarding alone.
For a deeper architectural distinction between centralized monitoring and endpoint protection, review this SIEM and antivirus comparison.

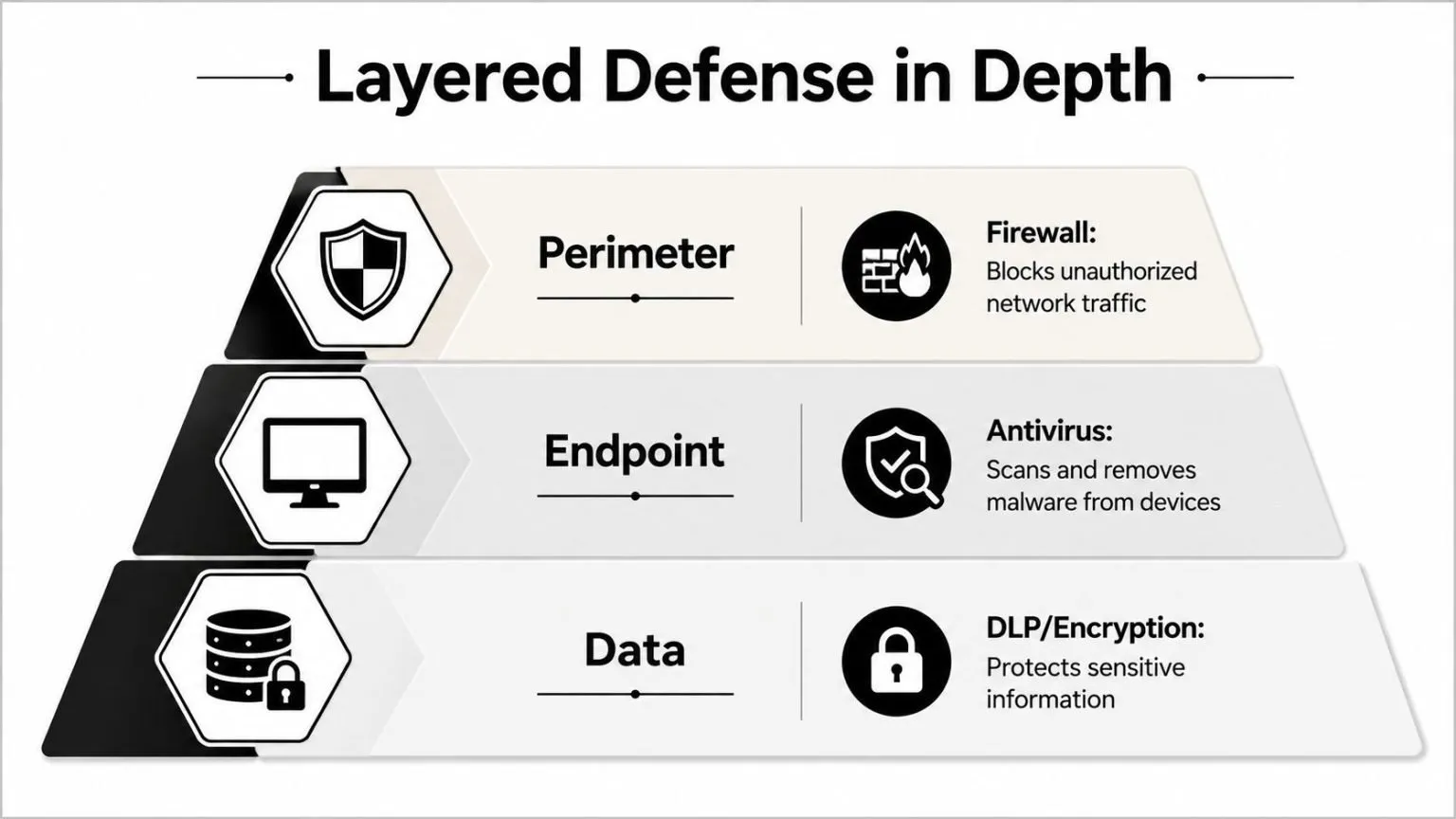

Building Layered Defense with Complementary Controls
A layered design assigns each control a job and assumes every layer can fail. The firewall limits exposure and restricts communications. Antivirus examines activity on the endpoint. Data loss prevention, encryption, identity controls, vulnerability management, and backups address risks that neither control can solve.
Overlap is useful, duplication is not
A firewall may block a known command-and-control destination before an endpoint connects. If the connection is allowed, antivirus may detect a downloaded payload or suspicious process. If both controls report events into a shared platform, analysts can determine whether the firewall prevented delivery or whether the endpoint received and executed the content.
That sequence is more valuable than either alert alone. It distinguishes blocked activity from successful evasion, which changes severity, containment, and evidence-preservation decisions.
The remaining gaps are predictable:
- Encrypted traffic: Without appropriate decryption, the firewall may have limited payload visibility.
- Novel attacks: Signature-based detection can miss previously unseen or heavily obfuscated behavior.
- Lateral movement: An attacker using valid credentials may move between systems without dropping a conventional malware file.
- Control tampering: A local firewall or endpoint agent may be disabled, altered, or misconfigured.
- Cloud and remote access: Traffic may bypass a traditional perimeter through approved cloud services or remote endpoints.
The security architecture should therefore connect prevention with detection. Firewall policy changes, endpoint health, identity events, DNS activity, cloud audit logs, and data access should reach the same analytical workflow.
Build the layers around failure detection
A practical design asks not only whether a control blocks an event, but also whether the organization can prove that the control was active, current, and reporting. That means monitoring agent status, firewall configuration changes, inspection health, scan completion, and logging continuity.
The firewall and antivirus provide the first enforcement points. SIEM/XDR supplies the cross-domain context and detection history. Human analysts then validate business context, determine scope, and approve high-impact actions where automation could interrupt critical operations.
Deployment Best Practices and Performance Sizing
Production deployment fails most often at the boundary between security settings and workload reality. Architects enable every inspection feature, distribute agents broadly, and discover later that throughput, latency, CPU, or application reliability has degraded.
Size the firewall for inspected traffic
Start with the traffic that the firewall must decrypt and scan, not the largest forwarding number in a datasheet. SSL/TLS decryption, inline antivirus, intrusion prevention, application identification, and logging all consume processing capacity. The FortiGate test described earlier demonstrates why HTTPS inspection can separate nominal forwarding performance from usable security capacity.
Use a representative traffic profile during validation. Include business applications, remote access, cloud services, large file transfers, and peak encrypted sessions. Test policy changes and failure modes too, because a firewall that fails open, fails closed, or bypasses inspection creates different operational risks.
A useful configuration review should examine rule order, broad allow statements, shadowed rules, administrative access, logging coverage, and change approval. Teams that need a practical starting point can find firewall configuration help while building their own review checklist.
Keep endpoint protection effective and usable
Endpoint antivirus needs reliable agent deployment, current protection content, healthy management connections, and clear ownership for exceptions. Exclusions should be narrow, documented, time-bound where possible, and reviewed after application changes. A broad exclusion may solve a performance complaint while removing visibility from a high-value directory or process path.
Endpoint operations should monitor:
- Agent health: Identify devices with stopped services, stale status, or missing protection.
- Scan activity: Confirm that scheduled and on-demand scans complete and produce records.
- Quarantine handling: Track detections, restoration requests, and repeated reappearance of the same artifact.
- Tamper resistance: Alert when users or processes attempt to disable protection or alter policy.
- Resource impact: Compare endpoint performance before and after inspection changes.
Hybrid estates add another design constraint. Cloud-hosted firewalls, remote endpoints, branch devices, and workload-specific controls may not share one administrative plane. Firewall-as-a-Service and cloud-native architectures can simplify reachability and policy distribution, but they also require consistent logging, identity context, and configuration monitoring across providers.

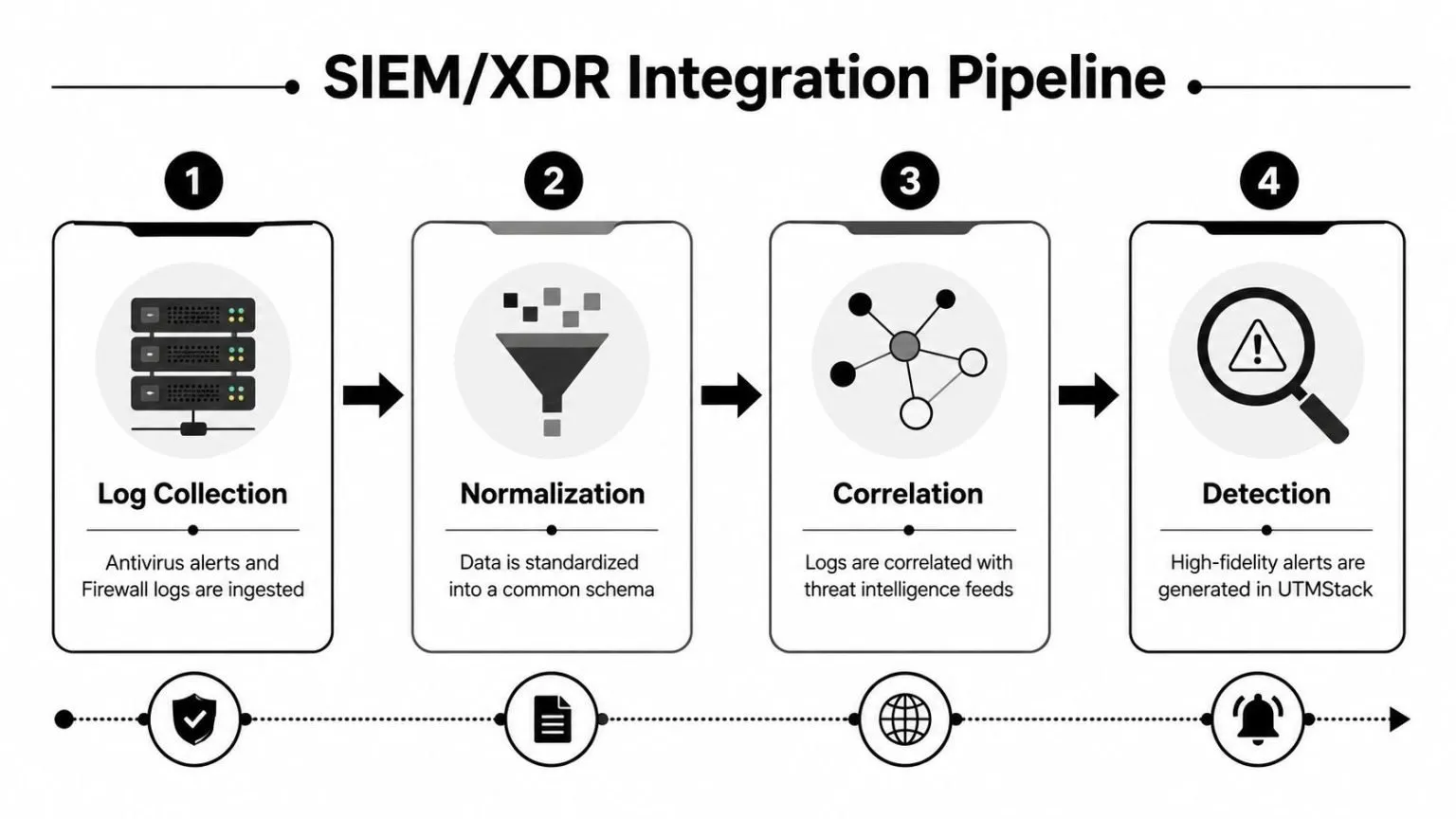

Integrating Telemetry with SIEM and XDR Platforms
The difference between deployed controls and operational defense is usually visible in the telemetry design. Collect events that explain prevention, detection, control health, and administrative change. Then normalize them so a correlation rule can compare an endpoint event with a network event without relying on vendor-specific field names.
Collect evidence that answers operational questions
At minimum, ingest these event families:
- Antivirus results: Detection name, file or process context, host, user, action, and confidence.
- Quarantine events: Artifact location, quarantine action, restoration attempt, and remediation status.
- Firewall decisions: Allow or deny result, source and destination context, policy identifier, application, and inspection outcome.
- Connection attempts: Repeated failures, unusual outbound destinations, unexpected services, and changes in communication patterns.
- Control changes: Antivirus policy updates, agent disablement, firewall rule modifications, and administrative activity.
UTMStack can ingest security data through Syslog, APIs, and agents, while its firewall integrations include products such as Cisco, Fortinet, Palo Alto, pfSense, and SonicWall. Its centralized log management capability provides the collection layer needed before normalization and correlation.
Write rules around sequences, not isolated alerts
A basic high-priority rule can join a firewall allow event with an antivirus detection on the same endpoint within a defined investigation window. That pairing suggests the network control permitted delivery or communication and the endpoint then encountered malicious activity. Enrich the alert with the user, asset criticality, destination reputation, vulnerability context, and whether the endpoint agent attempted remediation.
Other useful correlation patterns include:
- Policy change followed by outbound communication: A firewall rule modification followed by unusual external traffic may indicate administrative misuse or control impairment.
- Repeated denied connections followed by a successful connection: This can identify an account or process that eventually found an allowed path.
- Quarantine followed by recurrence: Repeated detections on one host may indicate persistence, reinfection, or an incomplete cleanup.
- Scan failure plus agent tampering: A failed scan combined with a disabled service should receive more attention than either event separately.
PCI-related guidance states that antivirus mechanisms must be current, perform scans, generate audit logs, remain active, and not be alterable. KirkpatrickPrice's PCI-focused guidance defines measurable telemetry for scan activity, log creation, and tamper resistance. Those fields belong in dashboards and detection rules, not only in an audit folder.

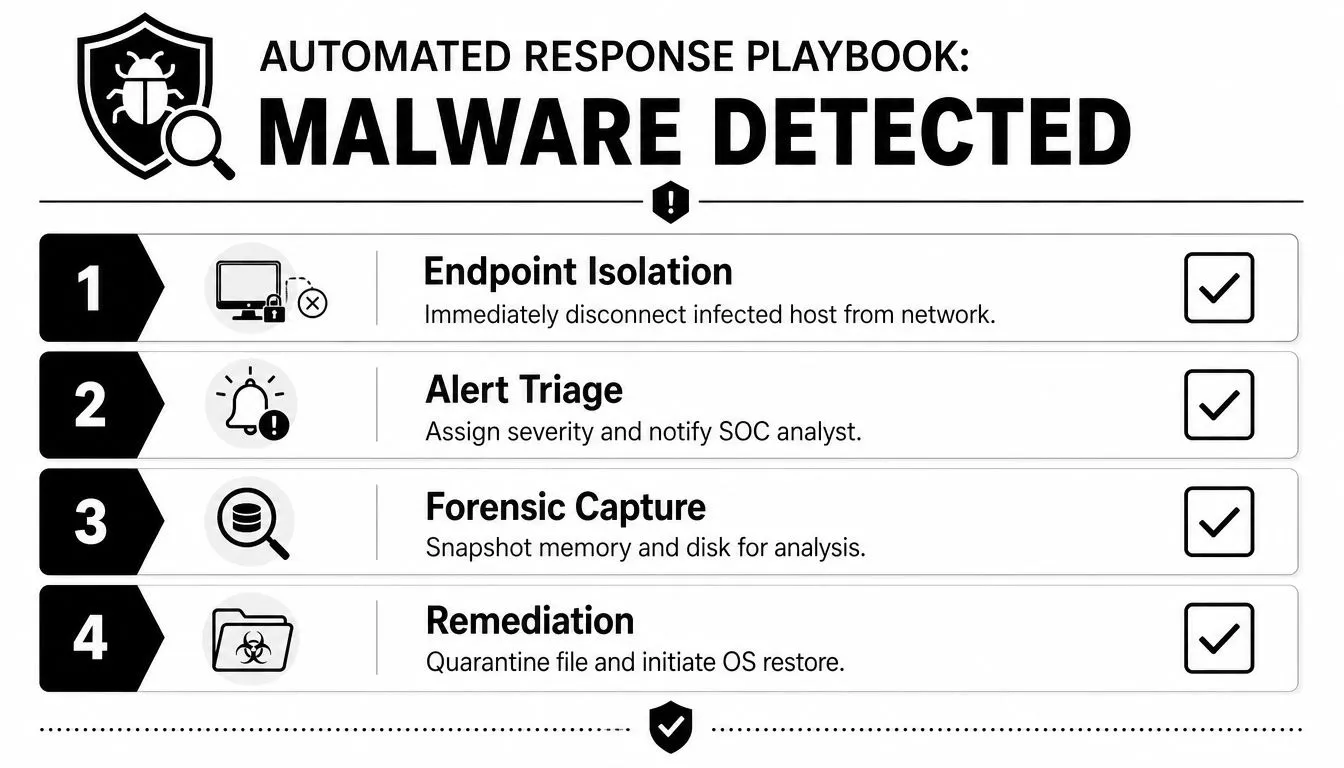

Designing Automated Response Playbooks
Automation should act on confidence and business impact, not on every antivirus alert. A playbook needs a trigger, enrichment steps, a containment action, an approval path, and a rollback method. Without those elements, automation can either leave an active threat untouched or disrupt a legitimate workload.
Start with the event sequence
A malware detection on a workstation, combined with suspicious outbound communication, is a stronger containment signal than a low-confidence detection with no network activity. The playbook can isolate the endpoint, preserve relevant evidence, notify the analyst, and request a scan or remediation action.
A suspicious outbound connection blocked by the firewall can trigger a targeted antivirus scan on the source endpoint. Repeated failed connection attempts can increase severity, initiate identity review, and notify the responsible analyst. The response should preserve the original firewall and endpoint events so investigators can reconstruct what happened.
Separate containment from destructive action
Endpoint isolation is often reversible. Deleting files, restoring an operating system, locking an account, or blocking a business-critical service carries greater operational risk. Use confidence thresholds and asset context to decide which actions run automatically.
A workable playbook sequence looks like this:
- Enrich first: Add asset owner, role, user, vulnerability state, recent logins, and related network activity.
- Contain proportionally: Isolate a workstation or restrict a destination before applying a broad network block.
- Preserve evidence: Capture available endpoint, memory, disk, process, and network details before remediation removes artifacts.
- Verify recovery: Confirm that the threat is gone, protection is active, and the endpoint is reporting normally.
- Roll back safely: Restore access only after analyst approval and record the reason for the decision.
A human-in-the-loop step is appropriate for servers, clinical systems, payment workloads, and other assets where isolation can interrupt essential services. The playbook should identify who can approve the action, how long the approval remains valid, and what happens if nobody responds.
Teams can use UTMStack incident response playbooks as a reference point for organizing predefined and custom workflows. The important design principle is not automation for its own sake. It's consistent, explainable response that reduces analyst delay without hiding uncertainty.
Mapping Controls to Compliance Frameworks
Antivirus and firewall controls produce audit evidence as well as security decisions. Treating them only as protective tools leaves organizations scrambling during assessments, because the auditor needs proof that controls were deployed, configured, monitored, maintained, and protected from unauthorized change.
PCI DSS makes the requirement concrete. Requirement 5 explicitly requires organizations to deploy antivirus software on systems commonly affected by viruses, and the same control family requires regular updating. The PCI DSS guidance frames antivirus as a formal control in payment-card environments, not an optional recommendation.
Turn control activity into evidence
For antivirus, retain evidence that shows:
- Deployment coverage across in-scope systems.
- Current protection status and update activity.
- Scan schedules, completion results, and exceptions.
- Detection, quarantine, remediation, and restoration events.
- Agent health and tamper-resistance events.
For firewalls, preserve rule configurations, administrative changes, policy approvals, allow and deny logs, inspection settings, and evidence that logging remained enabled. The evidence should connect to assets and control owners, not sit as disconnected exports with no review history.
Map evidence to the framework in use
The same telemetry can support different control objectives. A firewall rule change can support change management, access restriction, and monitoring evidence. Antivirus scan logs can support malware protection, system monitoring, and incident response. Endpoint isolation and firewall containment events can demonstrate response execution and recovery decisions.
UTMStack's compliance workflows map detections and evidence to frameworks including CMMC, HIPAA, SOC 2, ISO 27001, PCI, GDPR, and GLBA. That kind of mapping is useful when it links a requirement to an actual event, configuration record, review task, and responsible owner. It shouldn't replace control testing, but it can reduce the manual work required to assemble an audit trail.
Microsoft's industry-test page reports Microsoft Defender Antivirus with a 6.0/6.0 Protection score, 100% scores in November and December, and a 99.8% real-world protection rate in the referenced test. Microsoft's industry testing information illustrates how vendor-independent test results can supplement internal evidence, though test performance doesn't prove that an organization's deployment is healthy.
AV-TEST's June 2025 Windows 11 evaluation tested 17 endpoint security packages, using nearly 1,400 zero-day malware samples and nearly 19,000 malware samples in its reference set, with 11 products detecting all attackers at 100%. AV-TEST's Windows 11 evaluation shows the breadth of modern endpoint testing. Internal assurance still depends on deployment coverage, configuration, telemetry, and response evidence.
UTMStack brings antivirus and firewall telemetry into an open-source SIEM, SOAR, and XDR workflow, with log collection, real-time correlation, automated response playbooks, and compliance evidence mapping for hybrid environments. Visit UTMStack to evaluate how its integrations can connect endpoint events, firewall decisions, detection rules, and audit workflows in one operational platform.
