Application Layer Firewall: How It Works and Why It Matters
Your SOC dashboard shows a successful login from a normal user account. The connection uses HTTPS, the destination is an approved web server, and the network firewall allows it. Inside the request, however, an attacker has placed a SQL injection payload in a login parameter. Nothing is wrong with the perimeter firewall. It has been asked to answer a question it wasn't designed to answer.
That gap is where an application layer firewall belongs. It examines the web request itself, including headers, parameters, structured payloads, and protocol behavior, then applies rules that understand application context. The control doesn't replace network infrastructure or endpoint security. It adds visibility where lower-layer controls stop seeing meaning.
Table of Contents
- The Request That Slipped Past the Network Firewall
- What an Application Layer Firewall Actually Inspects
- How It Compares to Packet-Filtering and Stateful Firewalls
- Deployment Patterns and Where the Bottleneck Lives
- Why Default Rules Are Not Enough
- Attack Classes the Firewall Actually Mitigates
- Compliance Roles Across PCI, HIPAA, GLBA, and CMMC
- Feeding WAF Events into SIEM, XDR, and SOAR
The Request That Slipped Past the Network Firewall
The alert arrives after the application returns an unusual database error. A security engineer reviews the flow and finds that the request came over the expected port, reached the expected server, and followed a valid TCP session. The stateful network firewall recorded an ordinary connection because, from its perspective, the traffic satisfied its policy.
The malicious content lived inside the HTTP request. A parameter that should have contained a username carried an injection string instead. The network control could confirm the source, destination, port, and connection state, but it couldn't reliably determine whether the parameter matched the application's expected input or attempted to alter a database query.
That distinction matters in production. Attackers often use legitimate routes, valid credentials, and encrypted sessions. A firewall that stops at network or transport information may see a permitted conversation while the web server sees an instruction with dangerous intent.
The outside of the envelope
A useful analogy is mail handling. A packet-filtering firewall checks the address on the envelope. A stateful firewall also checks whether the envelope belongs to an established exchange. An application layer firewall opens the envelope, parses the letter, and asks whether the contents make sense for the receiving application.
This inspection can identify suspicious SQL syntax, script fragments, malformed protocol behavior, dangerous file paths, or unexpected request structures. It can also enforce application policies, such as permitted methods, acceptable content types, and limits on request elements, depending on the product and configuration.
Operational rule: A network firewall can prove that traffic is allowed to reach a service. It can't prove that the request is safe for the service.
Teams still need a sound Constructive-IT network infrastructure foundation, including segmentation, routing, access control, and resilient connectivity. The application layer firewall addresses a different failure mode, one where harmful instructions travel through an otherwise approved path.
The cost of treating the network firewall as a complete perimeter is more than a missed alert. Analysts may investigate the incident late, developers may discover the issue through application errors, and responders may lack the request-level evidence needed to understand the attack. Application inspection closes that visibility gap, but it introduces its own policy, performance, and coverage responsibilities.

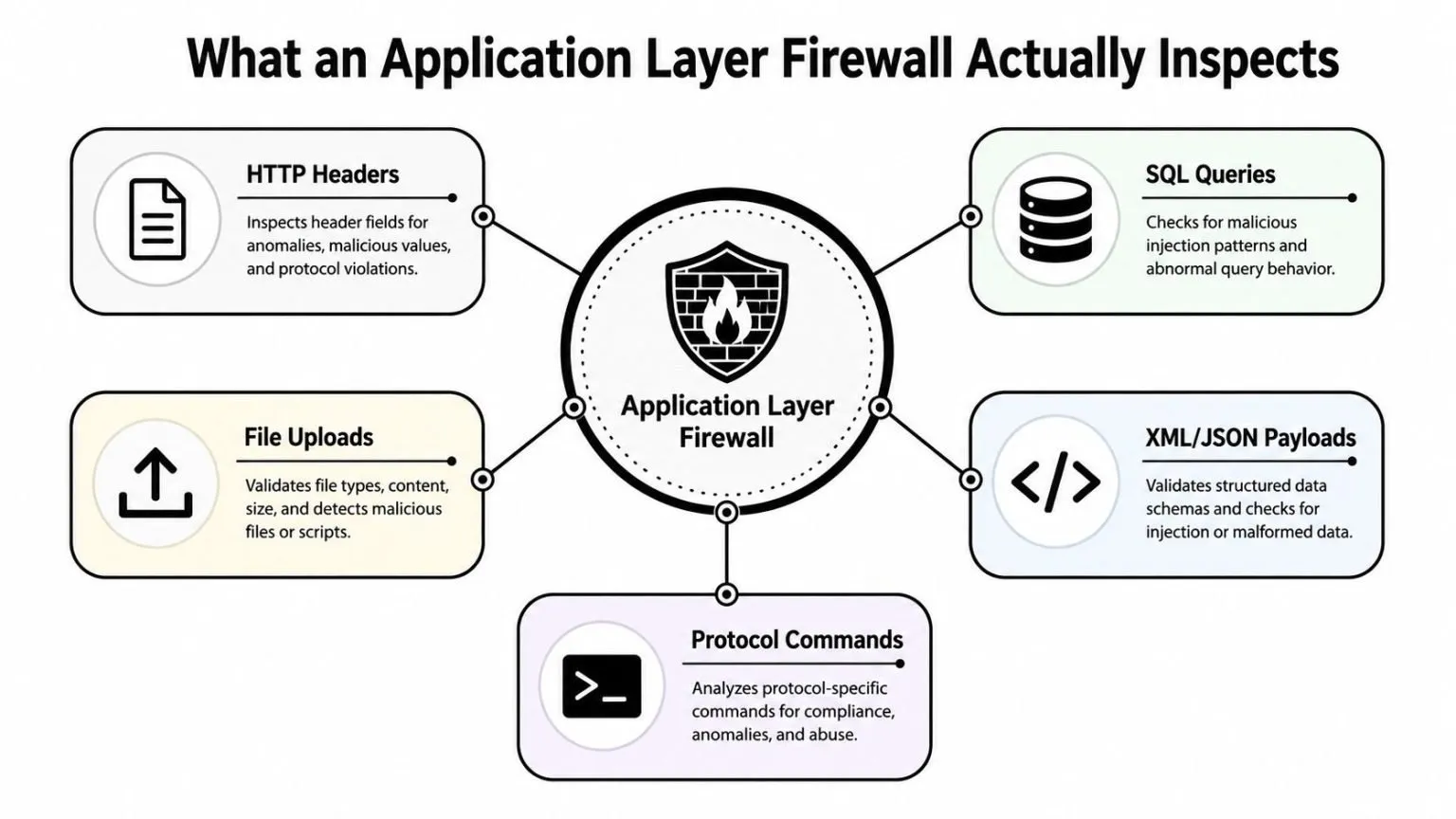

What an Application Layer Firewall Actually Inspects
Start with the request path rather than the product label. An application layer firewall operates at the highest commonly referenced OSI layer, Layer 7, where protocols carry meaning for users and software. Depending on its design, it can parse HTTP and HTTPS traffic and may also inspect application protocols such as DNS, FTP, and SMTP.
Step one, identify the conversation
The firewall first receives traffic through a deployment point, often a reverse proxy, inline device, or cloud service. It identifies the protocol, reconstructs the request where necessary, and associates related messages with a session. Session awareness helps it evaluate a request in context rather than treating every packet as an isolated object.
For HTTPS, inspection generally requires the control to terminate or otherwise access the decrypted traffic. That creates a security boundary that must be designed carefully. Certificates, key handling, privacy requirements, failure behavior, and the relationship between the firewall and the origin server all affect the deployment.
Step two, normalize and decode
Attackers can represent the same value in different encodings. A capable inspection engine normalizes the request before evaluating it, decoding relevant content and interpreting protocol syntax so that simple obfuscation doesn't automatically defeat detection.
The firewall may inspect:
- Headers: Host, method, content type, cookies, user-agent values, and other metadata.
- Queries and parameters: Values submitted through URLs, forms, and API requests.
- Request bodies: Form data, XML, JSON, and file-upload content.
- Protocol behavior: Invalid methods, malformed syntax, unusual sequences, and suspicious command patterns.
- Session context: Relationships between requests, authentication state, and application routes.
The mail analogy becomes useful here. The network firewall sees the delivery address. The application layer firewall reads the fields inside the form and checks whether they fit the expected conversation.
Step three, evaluate rules and decide
Inspection becomes an enforcement control when a rule engine translates parsed content into an action. The OWASP ModSecurity Core Rule Set is a generic attack-detection rule set designed for ModSecurity and compatible WAFs. It targets common web attacks associated with the OWASP Top Ten while aiming to keep false alerts low.
The resulting action might be allow, block, log, challenge, or route for further analysis. The firewall's event should preserve enough context for analysts to understand what matched, which endpoint received the request, and whether the control blocked or merely observed it.
How It Compares to Packet-Filtering and Stateful Firewalls
The phrase “more inspection” can create the wrong expectation. An application layer firewall isn't automatically a better replacement for every other firewall. Each generation answers a different question, and a strong architecture uses the control that matches the traffic and risk.
Firewall generations at a glance
| Capability | Packet Filter | Stateful Firewall | Application Layer Firewall |
|---|---|---|---|
| Primary view | IP addresses, protocols, and ports | Network attributes plus connection state | Parsed application requests and protocol semantics |
| Session awareness | Limited or absent | Tracks established conversations | Tracks sessions while evaluating request context |
| Payload inspection | Generally unavailable | Limited, depending on features | Examines headers, parameters, bodies, and commands |
| Typical decision | Allow or deny based on network attributes | Allow or deny based on policy and session state | Allow, block, challenge, or log based on application content and behavior |
| Best fit | Basic network access control | Perimeter and segmentation policy | Web, API, and other application-layer protection |
| Main blind spot | Malicious content in permitted traffic | Attacks hidden inside valid sessions | Business logic abuse, unknown flaws, and assets outside coverage |
A packet filter can reject traffic from an unauthorized network or to an unapproved port. A stateful firewall adds useful context by confirming that packets belong to a permitted connection. Neither necessarily understands that a valid HTTP request contains a database instruction or a script payload.
Why Layer 7 changes the question
SQL injection, cross-site scripting, and some forms of HTTP request smuggling can look like normal traffic below the application layer. The destination is legitimate, the port is open, and the session is correctly established. The application layer firewall asks a deeper question: does this request's content and structure make sense for the service receiving it?
That doesn't make the control universal. A network firewall remains the correct mechanism for routing boundaries, segmentation, non-application traffic, and broad access policy. Deploying a WAF where the service doesn't expose inspectable application semantics can add complexity without adding useful detection.
Teams reviewing perimeter policy can use DesignStack firewall advice as supplementary configuration context. For traffic that needs detection and prevention beyond access rules, an intrusion detection and prevention system can complement the firewall by examining broader network activity and generating security events for correlation.
The practical design is layered. Network controls decide who can communicate and where. Application controls inspect what the communication asks the service to do. Endpoint, identity, and data controls provide visibility into what happens when a request is accepted.

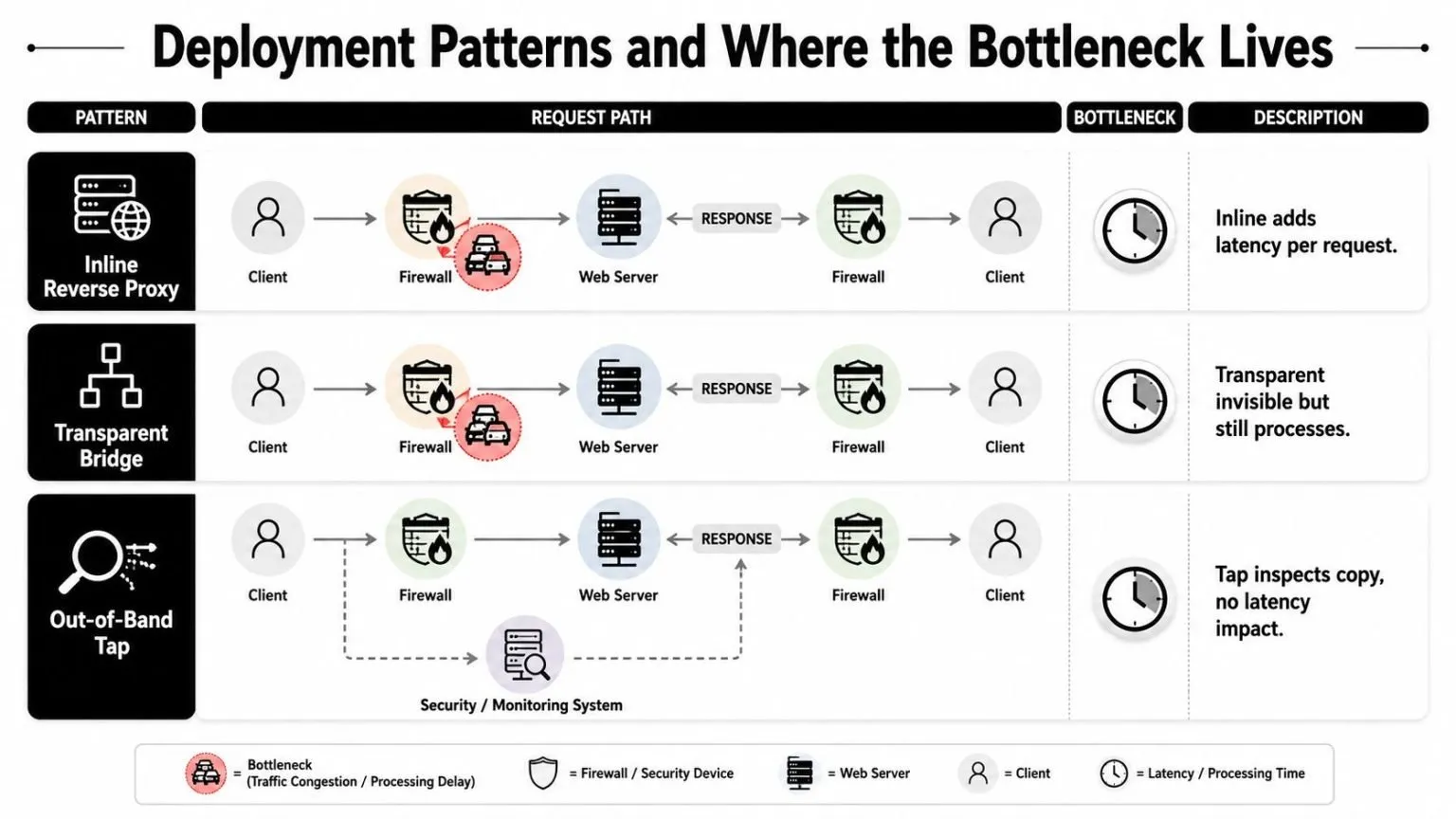

Deployment Patterns and Where the Bottleneck Lives
Placement determines both visibility and failure behavior. Put the control in the request path and it can block traffic, but every parsing operation consumes resources and can affect latency. Put it out of band and it can observe a copy, but it generally can't enforce a block before the origin receives the request.
Reverse proxy deployment
A reverse-proxy WAF sits in front of the web tier. The client connects to the proxy, the proxy terminates TLS when configured to do so, inspects the request, and forwards approved traffic to the origin.
This pattern provides strong control over routing, headers, TLS policy, authentication integration, and application-specific rules. It can also create an availability dependency. If the proxy cluster is undersized, misconfigured, or unavailable, legitimate users may experience failures even when the origin remains healthy.
Transparent inline deployment
A transparent bridge can inspect traffic without requiring the application to treat the device as its public-facing proxy. This can simplify some network migrations and support traffic patterns where proxy changes are difficult. It still processes traffic inline, so parsing, buffering, TLS handling, and rule evaluation can create pressure at the inspection point.
A tap or mirrored deployment sends a copy of traffic to an analyzer. That design avoids adding inspection latency to the live path, but it changes the control from prevention to detection unless another enforcement mechanism receives the decision.
Where performance degrades
The peer-reviewed ModSecurity study found that performance depends on more than the number of rules. Rule-set complexity and request characteristics also influence throughput, transaction rate, concurrency, and server efficiency under load. Because the firewall sits in the request path, deeper HTTP inspection can increase CPU and memory demand before network bandwidth becomes the limiting resource. The ModSecurity performance study provides the technical basis for that conclusion.
An independent benchmark makes the tuning effect concrete. A default OWASP-style configuration produced 120 ms P95 latency and 2,140 requests per second, while a tuned configuration produced 68 ms P95 latency and 2,890 requests per second. The benchmark report attributes the difference to the balance between inspection depth and per-request processing cost.
Performance checkpoint: Test the rules, decoding paths, request sizes, concurrency, and TLS behavior you'll operate in production. A clean network throughput test won't expose an expensive application inspection path.
Why Default Rules Are Not Enough
A WAF isn't a security appliance you install once and then forget. Default policies must work across many application designs, so they usually begin with broad detection logic and conservative assumptions about false positives. Your application may use custom JSON structures, unusual encodings, legacy routes, generated parameters, or business workflows that the generic policy doesn't understand.
Recent coverage of independent testing found that default WAF rules blocked only 48% of more than 360 tested CVE exploits. The result doesn't mean a WAF has no value. It means a deployment that stops at the vendor's initial policy can leave a substantial detection gap. The coverage of default WAF rule performance supports treating tuning and validation as part of the security control, not as optional maintenance.
What tuning looks like in practice
A security engineer should treat policy changes like production code. Start with representative traffic, application documentation, vulnerability findings, and known-good requests. Then adjust detection thresholds, exclusions, route-specific rules, and enforcement modes while preserving evidence for later review.
Useful activities include:
- False-positive triage: Identify legitimate requests that trigger rules, then narrow an exception by route, parameter, method, or trusted application context.
- Rule-set management: Review enabled rules, anomaly scoring, and sensitivity settings instead of enabling every possible inspection path blindly.
- Regression testing: Replay known-good traffic and attack simulations after policy changes so a fix for one endpoint doesn't weaken another.
- CVE validation: Test exploitable paths against the exact application version and deployment configuration rather than assuming a matching rule guarantees protection.
- Exception governance: Give every exception an owner, reason, scope, expiration or review date, and associated ticket.
The OWASP CRS is designed to detect common attacks with a minimum of false alerts, but “minimum” isn't the same as “zero.” Application behavior determines whether a generic rule is accurate, noisy, or incomplete.
Coverage comes before sophistication
Policy quality can't protect an asset the team hasn't inventoried. Independent 2025 analysis found that 52.3% of cloud-hosted assets lacked WAF protection, compared with 66.4% of non-cloud assets. Among assets collecting personal data, the analysis found no WAF safeguards for 39.3% of cloud assets and 63.4% of off-cloud assets. The enterprise WAF coverage analysis shows why asset discovery and consistent enforcement deserve priority.
Coverage rule: Before optimizing a rule, prove that every public application, API, and sensitive data path is known, assigned to an owner, and passing through the intended inspection point.
Attack Classes the Firewall Actually Mitigates
The firewall's strongest use case is content that appears inside a request and matches recognizable attack behavior. It can inspect parameters, headers, payloads, paths, and protocol structures, then compare them with rules and contextual thresholds.
Injection and scripting
SQL injection detection looks for suspicious database-oriented syntax in parameters and request bodies. The rule engine may identify combinations of operators, keywords, comments, encoding, and placement that don't fit ordinary input. It doesn't need to understand every database query, but it can recognize patterns associated with an attempt to change query logic.
Cross-site scripting detection examines submitted content for script-like markup, event handlers, encoded browser instructions, and other patterns that could execute in a user's browser. Local file inclusion and path traversal rules inspect file-related parameters for attempts to reach unintended resources.
Command injection detection applies similar reasoning to operating-system metacharacters and command structures. A request that includes shell-like syntax may be blocked or logged when it appears in a parameter that should contain a name, identifier, or search value.
APIs and automated abuse
Modern application layer protection increasingly includes API security, bot management, and Layer 7 DDoS defenses. These features address traffic that may not contain a classic exploit string, such as automated credential stuffing, excessive requests against an expensive endpoint, or access to an API route with an unexpected schema.
The boundary matters. A WAF can identify and constrain request patterns, but it may not understand whether a user is authorized to transfer a particular object or whether a workflow violates business intent. Those cases often require application authorization controls, identity analytics, and endpoint or database evidence.
The OWASP ModSecurity Core Rule Set is useful because it turns common application attack knowledge into inspectable rules. It supports detection for categories such as SQL injection, cross-site scripting, and local file inclusion, while allowing the deployment team to tune how those detections affect traffic.
A blocked request is also an event, not merely a discarded packet. Preserve the source context, target route, matched rule, user or session indicators where available, action, and response status. Those fields let analysts distinguish a random scan from a focused attempt against a vulnerable endpoint.
Compliance Roles Across PCI, HIPAA, GLBA, and CMMC
A WAF alert appears during an audit, but the auditor will ask what happened before and after it. Compliance frameworks do not treat a WAF as proof of security by itself. They look for identified risk, appropriate safeguards, controlled changes, monitoring, and retained evidence. An application layer firewall supports those objectives only when its coverage, policies, logs, reviews, and exceptions are governed.
PCI DSS makes the connection most explicit. Requirement 6.6 guidance describes options for addressing common threats to cardholder data and inspecting input from untrusted environments “top to bottom.” A public-facing web application that lacks adequate code review and application security testing must use an automated technical solution to detect and prevent web-based attacks. The PCI application review and WAF guidance describes a WAF as a possible compensating control when secure coding and testing do not sufficiently reduce risk.
Evidence matters as much as enforcement
For PCI, useful evidence can include approved WAF policies, change records, rule reviews, exception justifications, test results, alert history, and proof that covered public-facing applications are in scope. The PCI DSS compliance checklist can help teams organize this material alongside broader control requirements.
NIST SP 800-41 Rev. 1, published in September 2009, superseded the original 2002 version and provides a federal reference point for firewall technology and policy. NIST firewall guidance and policy context supports governance discussions about defining boundaries, documenting rules, and managing firewall controls as policy rather than ad hoc configuration.
HIPAA, GLBA, CMMC, ISO 27001, and SOC 2 address the issue through broader safeguards, risk management, access control, monitoring, change management, and evidence expectations. A WAF can provide technical telemetry and enforcement records, but it does not replace secure development, vulnerability management, identity controls, incident response, or data governance.
The useful audit question is specific: which applications does the WAF protect, what threats does it detect, who reviews its decisions, how are exceptions controlled, and can the organization demonstrate that process?
Feeding WAF Events into SIEM, XDR, and SOAR
A WAF reaches its operational value when its events join the rest of the security record. A single blocked request may be harmless scanning. The same source targeting a vulnerable route, generating authentication failures, and triggering endpoint alerts deserves a different priority.
Build a reliable event path
On-premises WAF appliances commonly forward events through Syslog. Cloud-native services usually expose APIs, event streams, or export integrations. Reverse-proxy deployments may use a collector or agent on the proxy host to ship access and security logs.
Normalize fields before correlation. At minimum, retain:
- Source identity: IP address, authenticated user, session marker, host, and user-agent where available.
- Target context: Application, virtual host, route, parameter category, and backend service.
- Detection detail: Rule identifier, attack category, severity, matched location, and action.
- Outcome: HTTP response status, request disposition, and whether the origin processed the request.
- Timing: Event timestamp and request duration, synchronized with the rest of the SOC telemetry.
Enrichment can add asset ownership, vulnerability findings, threat intelligence, identity risk, and endpoint context. A WAF alert becomes more useful when the SIEM knows that the targeted endpoint belongs to a payment application and that the destination server has a relevant unpatched weakness.
Correlate behavior, not isolated blocks
A practical correlation rule can combine a burst of WAF blocks from one source, a known vulnerable endpoint, and authentication failures against the same application. The rule should raise confidence when the events share a time window, target, session, or attack category, while avoiding a rigid threshold that treats every busy public service as an incident.
A SOAR playbook can then perform graduated response. It might enrich the source, notify the application owner, add a temporary firewall action, isolate a related endpoint when endpoint evidence supports compromise, and open a ticket containing the matched requests and vulnerability context. Human approval can remain required for disruptive actions, especially where shared infrastructure or partners could be affected.
Threat detection and response solutions provide useful context for connecting WAF telemetry with broader detection and response workflows. UTMStack can ingest security data from network devices, cloud services, and endpoints through APIs, Syslog, NetFlow, and agents, then correlate events, support automated response playbooks, and map evidence to compliance workflows.
The architect's objective is not to maximize blocked requests. It is to create a defensible chain from request inspection to detection, investigation, response, and improvement. Review blocked and allowed samples, measure false positives, test coverage after application changes, and feed lessons back into both WAF policy and application remediation.
